Which bucking bar shape reaches that rivet? Match the obstacle in front of the bar, not the rivet itself. A flange calls for an angled face, a box section calls for offset or hook, and a tight corner calls for whatever profile actually clears the surrounding structure. The rivet size still sets the weight. The access sets the shape, and getting the shape wrong is what turns an easy rivet into a fight with the gun.
Here is how to read three of the most common access problems, flanges, box structures, and corners, and which shape actually solves each one. For the full rundown of every standard shape, see our bucking bar shapes explained guide.
Why shape matters as much as weight
A bucking bar only works if its face sits flat and square against the rivet tail. Weight decides how much bucking mass you have. Shape decides whether you can physically deliver that mass to the rivet at all. A straight bar with the right weight for the job is useless if the structure will not let it lie flat, and a bucker forced to hold a bar at an angle is the most common reason for tipped heads and marked skin, not a bad gun operator.
Flanges: reach for an angled bar
A flange is the formed lip on a rib, spar, or stiffener where the skin attaches, and it sits at an angle to the surface around it by design. A straight bar’s flat face cannot land square on a rivet set into that lip, so the bucker ends up tipping the bar to make contact, which is exactly the setup for a leaning head.
An angled bar solves this directly. The face itself is cut at an angle, so the bar sits flat on the flange the same way a straight bar sits flat on open skin. Our ETBB15, a 4 x 1 x 1 inch angled bar at 2.1 lb, is a common fit for flange work on general airframe rivets. Browse the full angled bar lineup for other weights.
Box structures: offset or hook, depending on the reach
Box structure, a wing spar, a leading edge, a closed rib bay, gives you an enclosed space with rivets set back from the opening. The bar has to travel past the edge of the box before it ever reaches the rivet, and a straight or angled bar simply runs out of clearance.

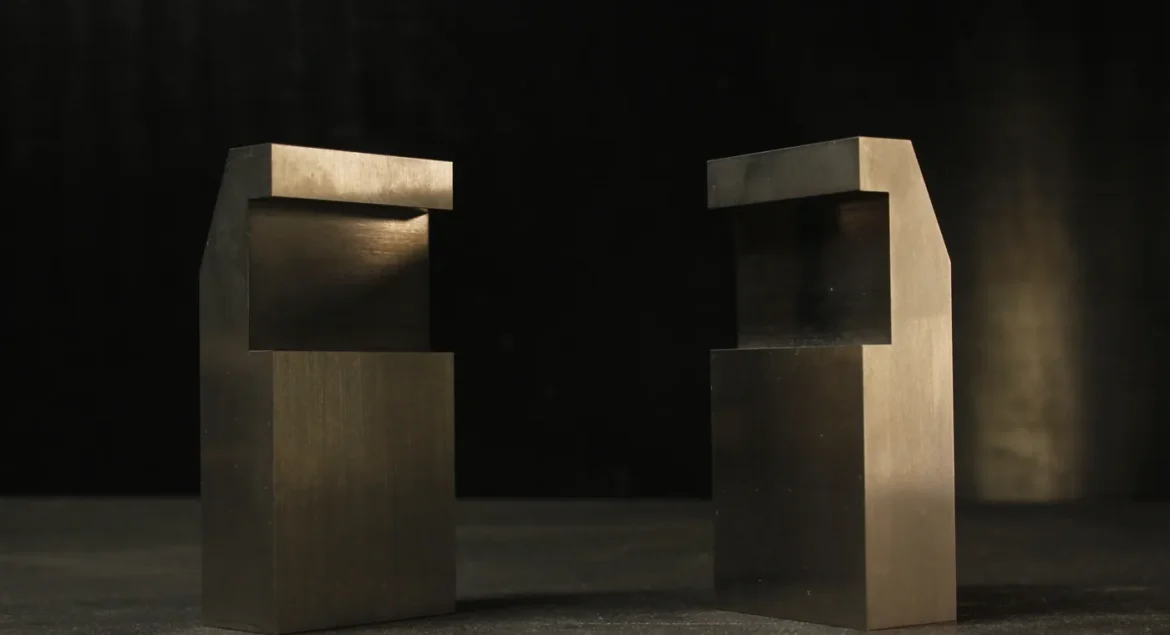

Two shapes solve this, and the difference is how far the offset needs to reach. An offset bar has a stepped profile, the working face sits behind a shoulder that clears a flange or a lip right at the opening, useful when the rivet is close behind the obstruction. Our ETBB07, a 6 x 1.5 x 0.75 inch offset bar at 2.85 lb, is built for that kind of stepped clearance. A hook bar goes further, curving around an edge or into a channel to reach a rivet set well back from the opening. Our ETBB22 and ETBB18 are both hook profiles built for that deeper reach. See the full offset and hook lineups to compare reach and weight.
Corners: usually low-profile, sometimes hook
A corner is where two panels or two structural members meet at an angle, and the working space shrinks to whatever gap is left once both surfaces are accounted for. The limiting factor here is almost never weight. It is how thin a bar you can fit into the gap before it even touches the rivet.
A low-profile bar is built exactly for this: a thin, flat cross-section that slips into shallow gaps a standard straight or angled bar cannot enter. Our ETBB38, 6 x 0.75 x 0.375 inches at 1 lb, and ETBB28, a heavier 3.15 lb version of the same idea, both fit corners where a thicker bar has nowhere to go. If the corner also has depth to it, a rivet set back from the opening rather than right at the edge, a hook bar with a thin profile does both jobs at once. Browse the full low-profile lineup.
How to tell which shape you actually need
Stand at the rivet and ask what stops a flat bar from sitting square on it. If the surface itself is angled, that is a flange, reach for angled. If something blocks the straight path in, an edge or a lip between you and the rivet, that is a box structure, reach for offset or hook depending on how far back the rivet sits. If the problem is simply not enough room for anything but the thinnest possible bar, that is a corner, reach for low-profile.
Weight still matters once the shape is right. A shape that fits but is too light will bounce, and a shape that fits but is too heavy will be hard to hold steady in a tight space for very long. Our weight guide covers matching weight to rivet size once you know the shape, our bar selection guide walks the full decision including reach and length, and the Bucking Bar Selector runs every question at once if you would rather answer a few prompts than work through it by hand.
Tungsten bars carry the same bucking mass as steel in a noticeably smaller block, which matters most exactly in the spots this guide covers, flanges, box structures, and corners are where every fraction of an inch of bar size counts. Tungsten shows up the same way across other aerospace components beyond bucking bars, wherever a dense material in a small package solves a real design constraint.
Common questions
What bucking bar shape do I need for a flange?
An angled bar. The angled face lets the bar sit flat against a rivet set into a formed lip, where a straight bar’s flat face cannot make square contact.
What is the best bucking bar for box structure?
An offset bar for a rivet set just behind an edge or a lip, and a hook bar for a rivet set further back inside an enclosed section. The offset’s stepped profile clears a shallow obstruction, while the hook’s curve reaches deeper.
Why does a bucking bar need a special shape for corners?
Corners usually come down to clearance, not reach. A low-profile bar’s thin cross-section fits into a shallow gap that a standard straight or angled bar physically cannot enter.
Can I use a straight bar in a tight space if it is light enough?
Weight does not solve an access problem. If the bar’s face cannot sit flat against the rivet because of the surrounding structure, a lighter straight bar still will not fit any better than a heavier one. Shape has to be right before weight matters.
How do I know if I need offset or hook for a specific spot?
Reach depth. If the rivet sits close behind a shallow edge or lip, an offset bar’s stepped face usually clears it. If the rivet is set well back inside a channel or behind a deeper obstruction, a hook bar’s curved profile reaches further.
